VNC Model

(0)

We are occupied with offering a complete scope of VNC Model Pneumatic Cylinder to the clients. Our clients can profit these items in various details from us.


Download PDF

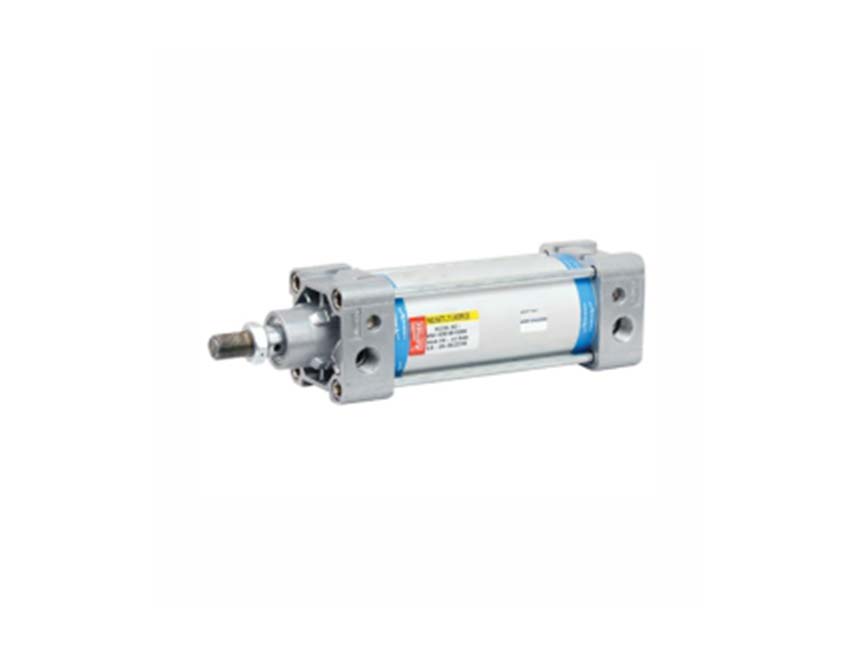

Airmax Make “VNC” Model (Round Tube & Tie Rod) Pneumatic Cylinders as per ISO 15552 & VDMA 24562 Standard.

Features :
* Hard Anodized Aluminum profile (round) type cylinder barrel.
* Bore Size 32 to 250 mm.
* Adjustable cushioning at both ends with elastomer pads.
* Magnetic and Non-Magnetic cylinder.
* Wide range of mountings as per VDMA 24562 standards.
* Magnetic sensor common for all sizes.
* Modern design and consistent engineering.
* Double slots on 3 sides of cylinder position sensors.
* An extensive range of mounting accessories make it possible to install the solution virtually anywhere.
* Allen screws with internal thread for mounting components.
* Additional cushioning rings in the end-positions for absorbing
* residual energy from high speeds and fast machine cycles.
