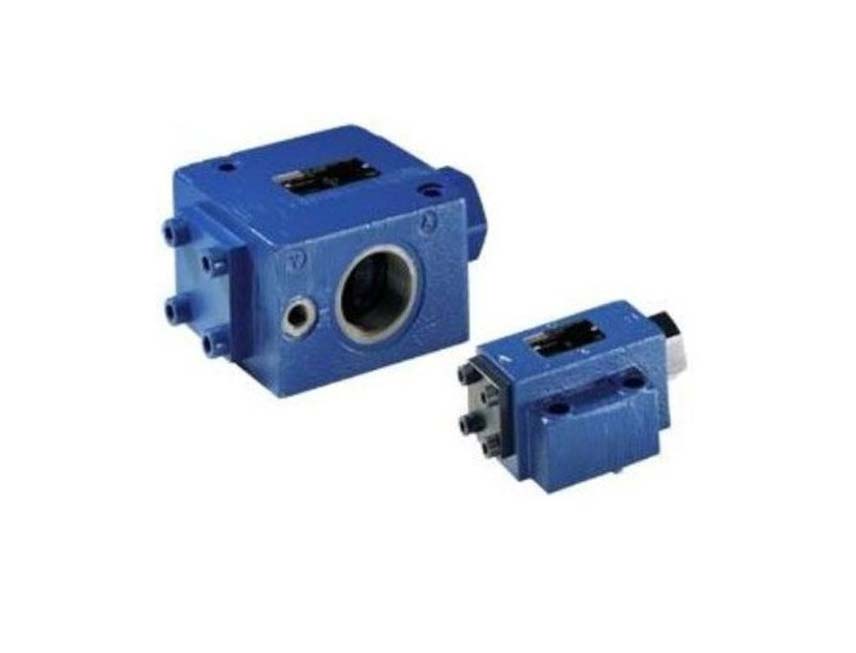

SL-10 isolator valve Dealer in Chennai. type SV/SL is a pilot worked actually take a look at valve for subplate mounting or strung association. It is utilized for the spillage free obstructing of one actuator port, likewise in the event of longer halt times.
SL-10 isolator valve Dealer in Chennai. The valve fundamentally comprises of a lodging, a seat poppet, a pressure spring, a control spool as well starting at a discretionary pre-opening as ball seat valve. The seat valve can be flown through from A to B without outside pilot pressure. The other way, the seat valve closes powerfully close. Condition: pA > pB + breaking (pressure spring).A adequately high pilot strain at port X moves the control spool toward the ball seat valve (form “A”) and pushes the seat poppet out of its seat.
This takes into account a free stream in the two bearings (dynamic keeping open).In request to guarantee that the seat valve effectively opens, the strain proportions on the two sides of the control spool are similarly all around as significant as the area proportions at the control spool or seat poppet.
This outcomes in the accompanying accessible choices for the kinds
▶ SV (enormous annulus region A3 associated with pA) or
▶ SL (little annulus region A4)
as well concerning the forms with pre-opening “A” and without pre-opening “B”. Form “A” (with pre-opening)This valve is given an extra pre-opening. By compression at the X port, the control spool is moved to one side. Thus, the ball is driven over the seat first and the seat poppet subsequently.
