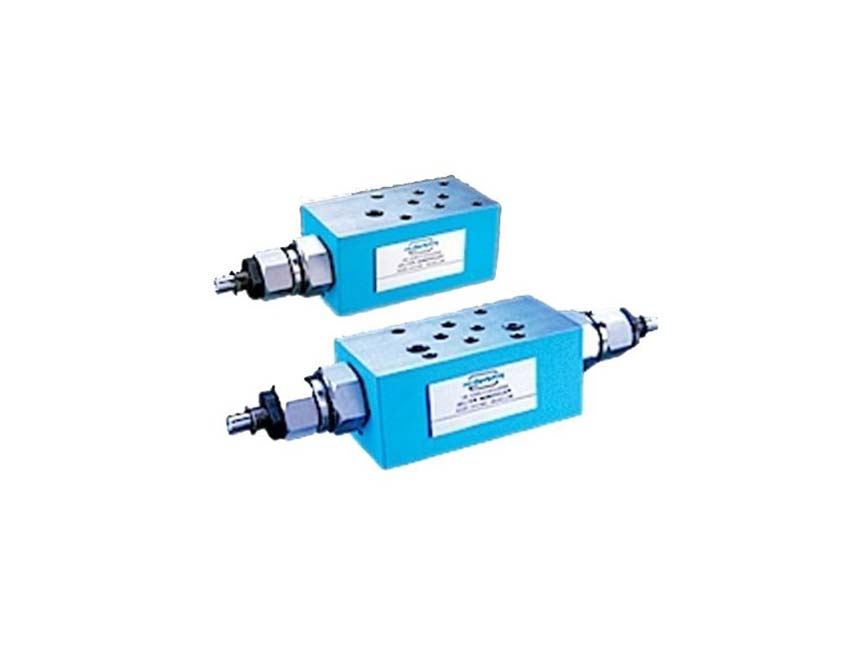

MPPR Modular Relief Valve Dealer in Chennai. Pilot optd. pressure Relief Valve secluded development for vertical stacking gatherings. For Cartridge Valve subtleties allude P09605
Download PDF
MPPR Modular Relief Valve Dealer in Chennai.
Interface conforming to
ISO 4401 – AB – 03 – 04 – A
IS 10187
DIN 24340
Four models available.
Technical specification :
Construction …………………………………………. Modular(stackable type)
Mounting ………………………………………………. Modular type, conforming to -IS 10187ISO 4401 – AB – 03 – 4 – A DIN 24340
Mounting position …………………………………… Optional
Direction of flow …………………………………….. As indicated by the hydraulic symbols.
Operating pressure ………………………………… 315 bar for all ports.
Cracking pressure ………………………………….. Refer PPR06 datasheet
Voscosity range …………………………………….. 10 cSt to 380 cSt.
Fluid temperature range ………………………….. -10 °C to +80 °C
Nominal flow handling capacity ………………… 30 lpm
