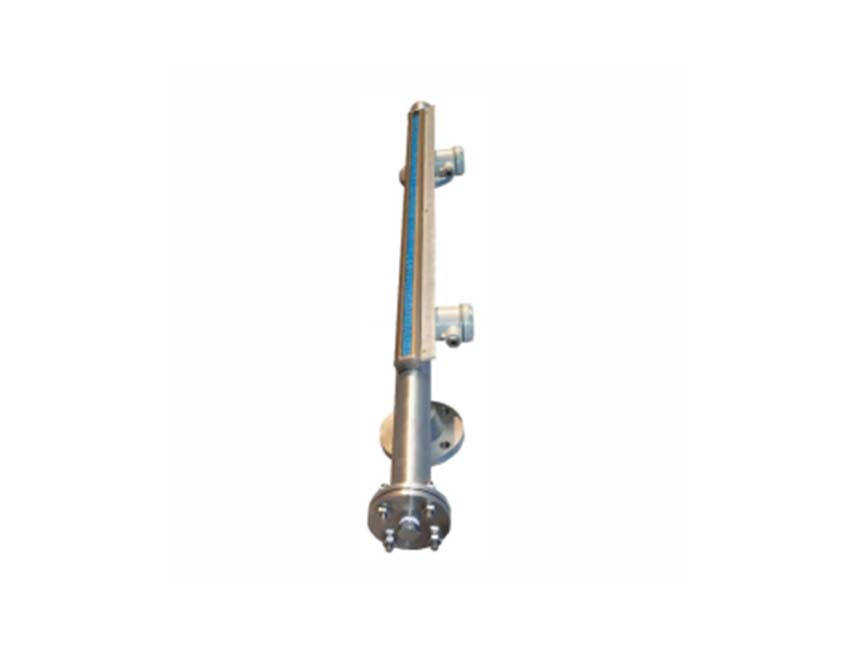

LD

(0)

We are occupied with offering a complete scope of Baumer Level Measurements LD Series to the clients. Our clients can profit these items in various details from us.


Download PDF

Features :
* Enhanced protection due to metallic chamber
* Can be used for the level measurement for the atmospheric & pressurized condition
* Better reliability at high temperature & pressure
* Clear visibility of level for longer duration
* Easy to set contacts at different desired levels (optional)
* Transmitter output 4 – 20 mA (optional)

Applications :
* Processing tanks & under ground tanks
* Pharmaceutical & beverage plants
* Custody transfer
* Chemical & fertilizer plant

Working Principle & Operation :
Magnetic level gauge consists float containing properly centered special magnet, has greater magnetizing force than the outside mounted flapper magnet of the indicator system. Attached to the chamber is a series of bi -colored flapper each containing magnet. As the liquid raise in the tank or vessel the same level comes in float chamber, due to buoyancy force flow starts moving within the chamber, which cause bi -colored flapper flip to the opposite sides or 180 °, providing a visual display of the liquid and protects against the false actuation. LD By-Pass level Indicator Side mounted/Top mounted Supplier in Chennai.
