ECO Wafer Butterfly Valve

(0)

We are occupied with offering a complete scope of Aira ECO Wafer Butterfly Valve to the clients. Our clients can profit these items in various details from us.


Download PDF

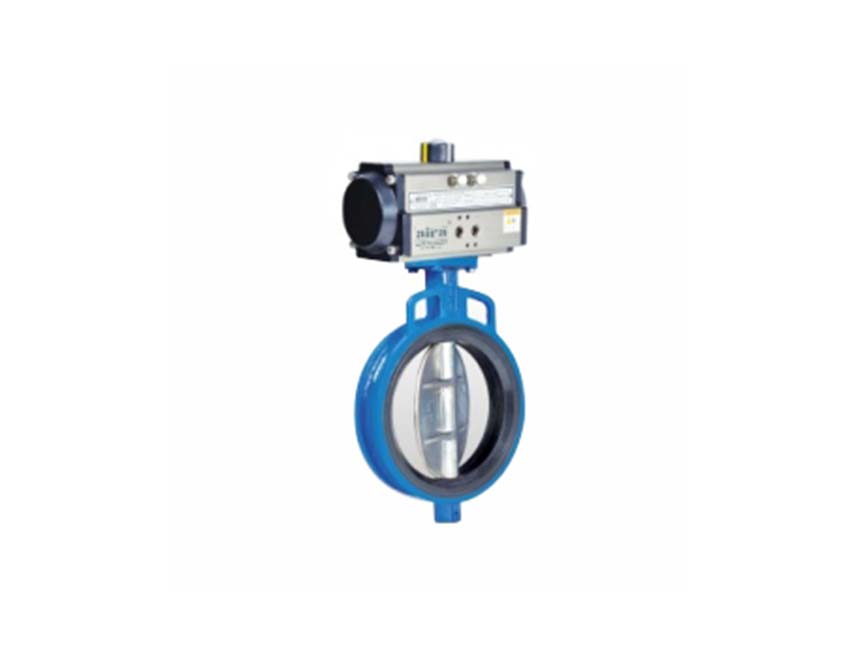

ECO Pneumatic Rotary Actuator Wafer Butterfly Valve Supplier in Chennai

Specifications :
Model : ECO
Body : Gray Iron / Cast Steel / Ductile Iron / CF8 / CF8M / CF3M / CD4MCuN
Size Range : 1.1/2″ to 48″
Shaft : AISI 410 / AISI 304 / AISI 316 / AISI 316L
Disc. : Gray Iron / Cast Steel / Ductile Iron / CF8 / CF8M / CF3M / CD4MCuN (S.G. Iron with Teflon / Teflon / Powder / Nylon Coated / & Rubber Line)
Seat : Nitrile / EPDM / Viton / Hypelon / Neoprene
Seat Leakage : Tight Shut Off
Temperature : -20°C to 80°C (High Temperature available on Request)
Pressure rating : PN 10 / PN 16 ( PN 20 ON REQUEST)
End Connection : Wafer Type Suit 150#, Table ‘D’, ‘E’ & IS 6392 Table 11 (PN 10 / PN 16)
