We are occupied with offering a complete scope of Aira Double Eccentric Off-Set Double Flange 150 to the clients. Our clients can profit these items in various details from us.
Download PDF

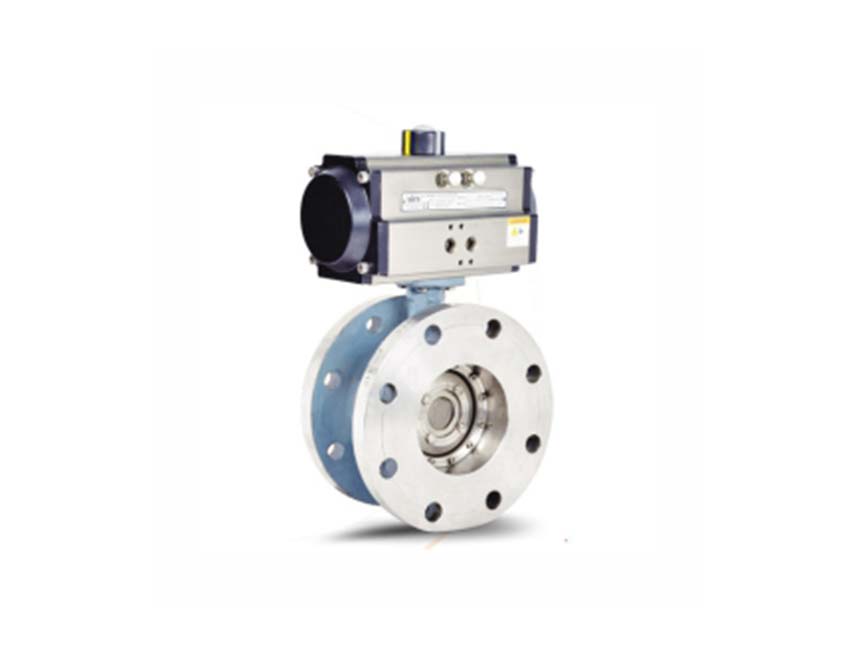

BOD Pneumatic Actuator Double Offset Butterfly Valve Supplier in Chennai
Specifications :
Model : BOD
Design : Eccentric Design Off Set Disc Double Flange Fire Safe Design Butterfly Valve
Body : Cast Iron / Ductile Iron / WCB / CF8 / CF8M
Size Range : 2.1/2″ To 48″
Shaft : S.S. 304 / 316 / 410
Disc. : Ductile Iron / WCB / CF8 / CF8M
Seat : NBR/EPDM/VITON/PTFE/RPTFE/TFM
Leakage : Class VI as Per ANSI B 16,B 16.104
Temperature : up to 220° C
Pressure rating : PN 10 / PN 16 / PN 25
End Connection : As Per ASME B 16.5 Class 150
