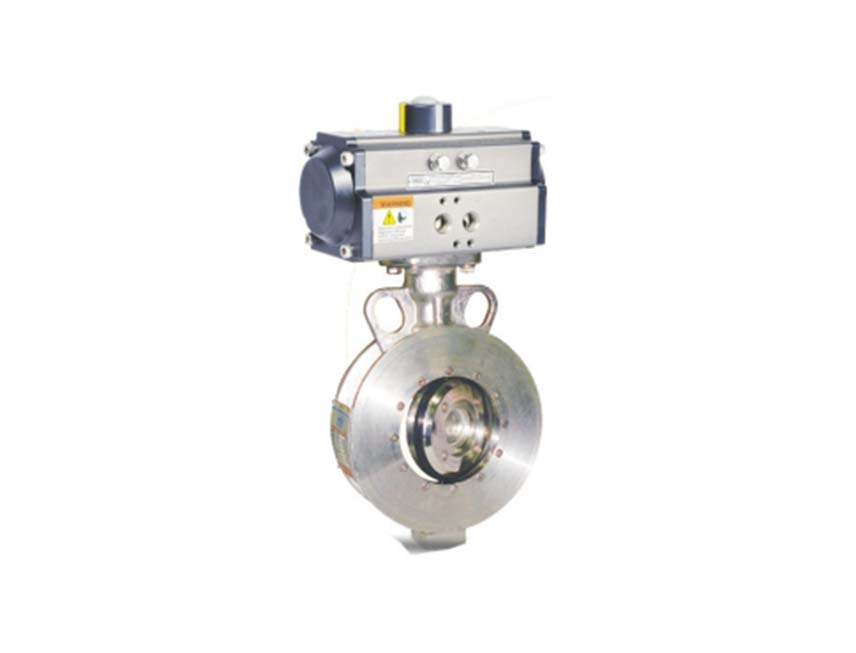

Double Eccentric Off-Set Disc Wafer Type

(0)

We are occupied with offering a complete scope of Aira Double Eccentric Off-Set Disc Wafer Type to the clients. Our clients can profit these items in various details from us.


Download PDF

QOD Pneumatic Actuator Double Eccentric Off – Set Disc Wafer Type Butterfly Valve Supplier in Chennai

Specifications :
Model : QOD
Design : Double Eccentric Design Off Set Disc “Wafer” type Fire Safe Design Butterfly Valve
Body : Cast Iron / Ductile Iron / WCB / CF8 / CF8M
Size Range : 2.1/2″ to 48″
Shaft : S.S. 304 / 316 / 410
Disc. : Cast Iron / Ductile Iron / WCB / CF8 / CF8M
Seat : NBR/EPDM/VITON/PTFE/RPTFE/TFM
Leakage : Class VI
Temperature : -20°C to 120°C (EPDM) | -20°C to 300°C (M to M)
Pressure : Upto 10 Kg/Cm²
Pressure rating : PN 10 / PN 16 / PN 25
Media : Air, Water, Oil & Gas
Ends : Wafer Type
End Connection : As Per ASME B 16.5 Class 150
