3 Way / 4 Way / 5 Way Ball Valve

(0)

We are occupied with offering a complete scope of Aira 3 Way / 4 Way / 5 Way Ball Valve to the clients. Our clients can profit these items in various details from us.


Download PDF

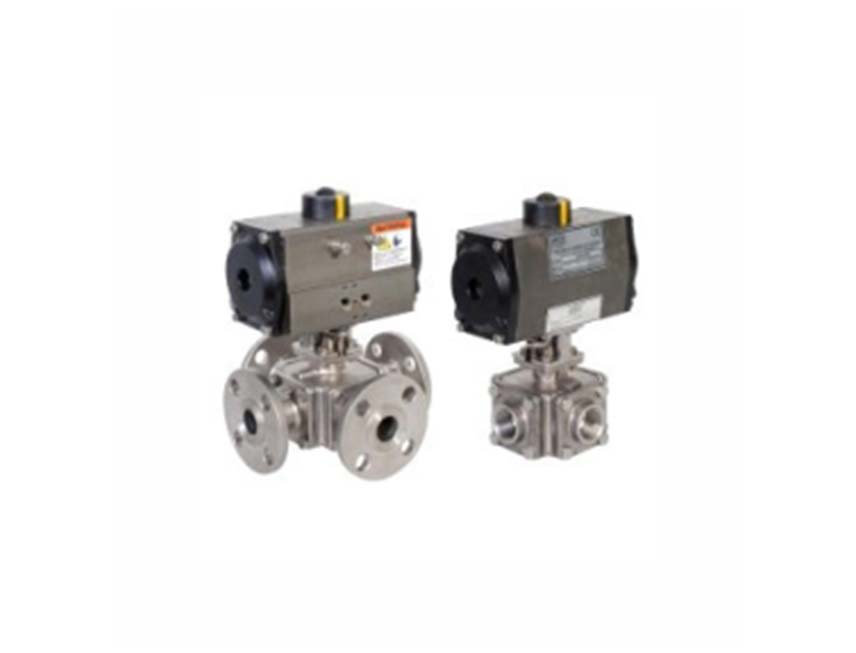

Pneumatic Rotary Actuator Operated SUZ 3 Way / 4 Way / 5 Way Ball Valve Supplier in Chennai.

Specifications :
Model : SUZ
Design : 3 Way-4 Way-5 Way Design Ball Valve For Multiple Diverting / Mixing Operation available in “T” Port / “L” Port / “X” Port in Full Bore / Reduce Bore
Body : WCB / CF8 / CF8M
Size : 1/2″ to 6″
Ball : CF8 / CF8M
Seat : PTFE / GFT / CFT / PEEK / TFM
Temperature : up to 180 °C
Pressure : up to 10 BAR
End Connection : Screwed End To BSP/NPT, Socket Weld ,Triclover Ends, Flanged End To ASME B16.5 Class 150 / 300
