2PF

(0)

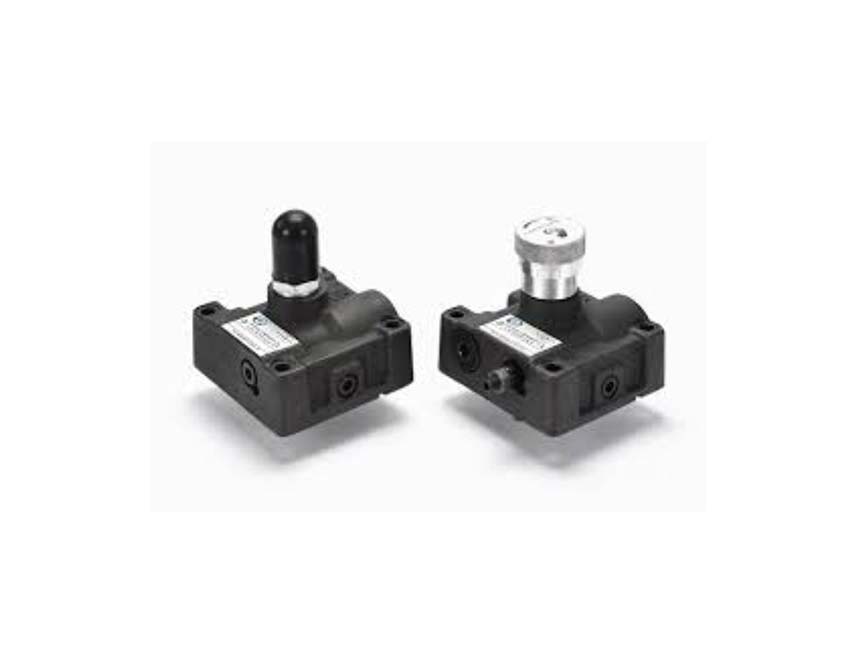

2PF Flow control valve Dealer in Chennai. Pressure compensated flow control in the direction of flow from port A to B. Check valve option for reverse free flow.


Download PDF

2PF Flow control valve Dealer in Chennai. Seven rotations of hand knob over the controlling range to facilitate setting with ease. Stroke limiter option available for surge free start at any flow setting.

Technical specifications :
Construction : Differential piston with sharp edge orifice.
Interface : ISO 6263-06-05.
Flow direction : Controlled flow from Port A to Port B with optional reverse free check valve.
Flow controlling capacity : Minimum 0.25 to 4 l/min, 0.5 to 8 l/min, 1 to 16 l/min or 2 to 32 l/min3 to 40 l/min.
Flow controlling accuracy : ± 3%. (At an average temperature of 40°C and Oil viscosity grade 46.)
Operating pressures : 315 bar.
Minimum pressure differential required : 7 bar from Port A to Port B.
Hydraulic medium : Mineral oil.
Temperature range : -20°C to + 80°C.
Viscosity range : 10 cSt to 380 cSt.
Fluid cleanliness required : ISO 4406 20/18/15 or better.
Mass (approx) : 2.4 Kg.
