We are occupied with offering a complete scope of Aira 2/2 – 3/2 High Temperature PKH On/Off Control Valve to the clients. Our clients can profit these items in various details from us.
Download PDF

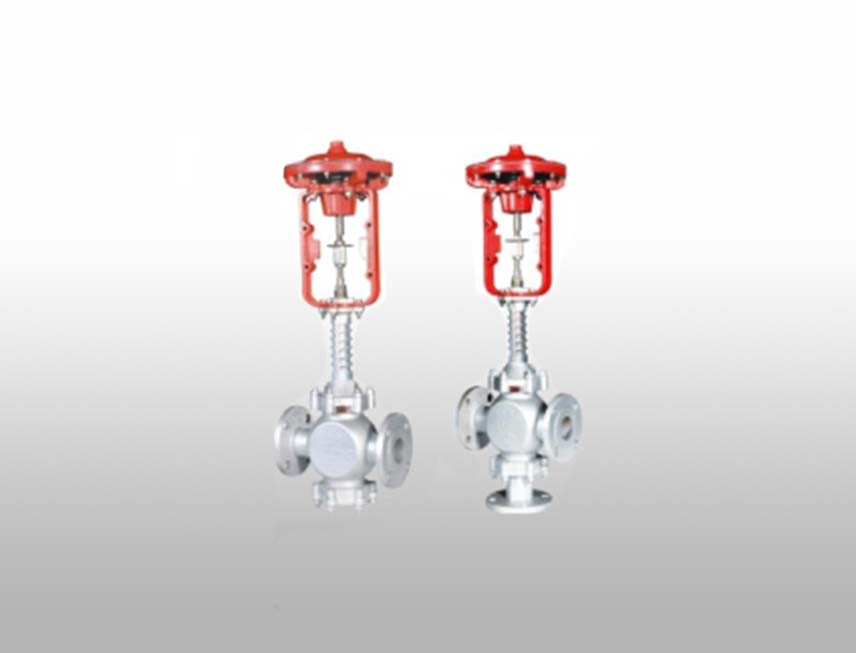

PKH 2/2 – 3/2 Way Pneumatic Diaphragm Operated Modulating type Control Valve High Temperature Supplier in Chennai
Specifications :
Actuator Details:
Actuator : Diaphragm Type Single Acting
Actuator Action : Air to Open / Air to Close
Air Fail Position : Closed / Open
Working Pressure : 2.5 to 3.5 Kg/cm²
Valve Details:
Model : PKH
Type of Valve : Globe Type 2/2 Way – 3/2 Way
Size Range : 1/2″ to 6″
Body : WCB / CF8 / CF8M
Bonnet : CF8 / CF8M / CF3M
Seat : Metal to Metal
Trim / Plug : S.S.304
Pressure : up to 10 Bar
Temperature : up to 450°C
Leakage Class : Class IV As Per ASME B 16.104 CL For Metal to Metal Seating / FCI 70.2
End Connection : Flanged End As Per ASME B16.5 Class 150(300 Class & 600 Class available on Request)
